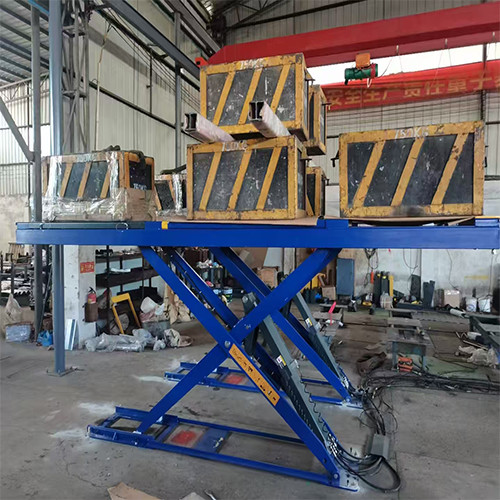

4000kg super thin wheel alignment scissors lift with 4500mm length platform

Name: 4000kg super thin wheel alignment scissors lift with 4500mm length platform
Brand: Iter
Price: 1 USD

China 4000kg super thin wheel alignment scissors lift with 4500mm length platform wholesale

Brand Name : Iter

Model Number : T400C

Certification : CE

Place of Origin : Guangdong

MOQ : 1set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 1000sets/month

Delivery Time : 5-10days

Packaging Details : steel frame and carton

Color : red/blue/yellow/grey

Voltage : 380V/220V/as your request

Volume : 3cbm/set

Package : steel frame and carton

Warranty : 1 year

lifting capacity : 4000kg

Contact Now

4000kg super thin wheel alignment scissors lift with 4500mm length platform

Features:
Ultra-thin design for easy on ground mounting.
Ideal choice for alignment and chassis checking and vehicle maintenance.
Adjustable turntable, good for different car.
Japanese and America oil seals ensure the perfect performance of oil cylinder.
Low tension 24V power.
Pneumatic unlock device, to reduce the noise.
Aluminum motor prevents overheated.

Technical data:

Lifting Capacity	8800Lbs/4000kg
Lifting Height	65.7"/1670mm
Secondary Lifting Height	17"/430mm
Min Height	8.27"/210mm
Overall length	165"/4500mm
Platform Width	26.36"/670mm
Width Between Two Platforms	32.28"/820mm
Capacity of Motor	3kw
Lifting time for large scissor	30seconds
Lifting time for jack	20seconds
Air source Pressure	5-6kg/cm²
Motor Voltage	220V/380V
Frequency	50Hz/60Hz
Phase	1ph/3ph
Net weight	4410Lbs/2000kg

Details:

4000kg super thin wheel alignment scissors lift with 4500mm length platform

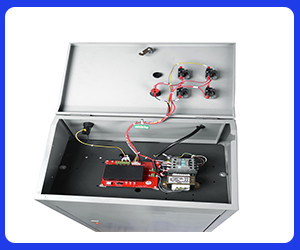

Control box Circuit board

4000kg super thin wheel alignment scissors lift with 4500mm length platform

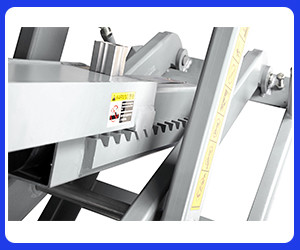

Alumimum pump station Safety lock

4000kg super thin wheel alignment scissors lift with 4500mm length platform
